John Breker

Banding Phosphorus and Potassium: Stretch your fertilizer dollars further

in , , /by

This article originally appeared in the AGVISE Laboratories Winter 2022 Newsletter

Broadcast or band? For phosphorus and potassium, these are big fertilizer questions. In recent months, high fertilizer prices have prompted farmers and agronomists to consider other strategies to reduce fertilizer costs without jeopardizing crop yield. Among the most common and effective options is placing fertilizer in a tight band below the soil surface, also known as a subsurface band.

Subsurface banding helps improve fertilizer recovery and efficiency. It ensures that fertilizer is placed in the plant root zone, facilitating direct uptake of crop nutrients. It also minimizes potential fixation reactions (aka tie-up) that reduce soil nutrient availability, allowing more phosphorus or potassium to remain available in soil for plant uptake. You ultimately get more bang for your buck on each pound of fertilizer applied. In addition, placing fertilizer below the soil surface protects fertilizer from

Idealized crop response to phosphorus as affected by fertilizer placement and soil test level (figure from J. Prod. Agric. 1:70-79).

soil erosion and runoff losses via wind and water. This is important for fall-applied phosphorus and potassium because spring snowmelt runoff and wind erosion can move fertilizer lying on the soil surface from neighbor to neighbor and watersheds beyond.

When we discuss banding phosphorus and potassium, it also comes along with the question, “How far can I cut fertilizer rates?” It is important to recognize that the improved efficiency of banding over broadcast is a function of soil test levels (figure) and proximity to the seed row. If you have high soil test levels (>15 ppm Olsen P), then the expected crop yield response to fertilizer, whether broadcast or banded, is lower. Banding fertilizer still helps with the fertilizer recovery, but the expected crop yield increase is often similar to broadcast. However, if you have low soil test levels, then the expected crop yield response is much greater with banding.

Where does seed row proximity fit in? The greatest efficiency comes with in-furrow or near-seed placement (e.g. 2×2 band), allowing effective fertilizer rates of one-half to two-thirds their broadcast equivalent. The near-seed placement also provides the starter effect, which enhances early plant growth and development in cool, wet soils of the upper Midwest and northern Great Plains. Of course, you must watch seed safety with any seed-placed fertilizer in the furrow.

For deep-band or mid-row band placement, the benefits over broadcast begin to disappear. These are still great placement options for anhydrous ammonia or urea, but the greater distance between the seed row and fertilizer band does not provide the same efficiency for immobile soil nutrients like phosphorus and potassium. This will surprise some people hoping that strip-till with deep-banded phosphorus and potassium or a one-pass air seeder with mid-row banders might be their answer to reducing fertilizer costs. For these “far-from-seed” banding options, reduced fertilizer rates are not suggested, and some in-furrow or near-seed banded fertilizer should still be applied for the current crop.



John Lee

Fall-applied Nitrogen Fertilizer: A Couple Simple Rules

in , /by

The beginning to mid-October is when soil temperatures across the northern Great Plains and Canadian Prairies typically drop below 50 °F (10 °C). This is the soil temperature threshold that we wait to reach before applying fall-applied nitrogen fertilizer. It is important to wait until soil temperatures are cold enough (<50 °F) to help reduce the risk of soil nitrogen loss. Once nitrogen fertilizer is applied, soil microbes begin converting ammonium-nitrogen (NH4+) to nitrate-nitrogen (NO3–), a process called nitrification. In the nitrate form, nitrogen is vulnerable to loss through nitrate leaching or denitrification. The colder soil temperatures slow microbial activity, thus keeping more nitrogen in the safer ammonium-nitrogen form. This applies to any ammoniacal nitrogen fertilizer source, which includes anhydrous ammonia, urea, and ammonium sulfate.

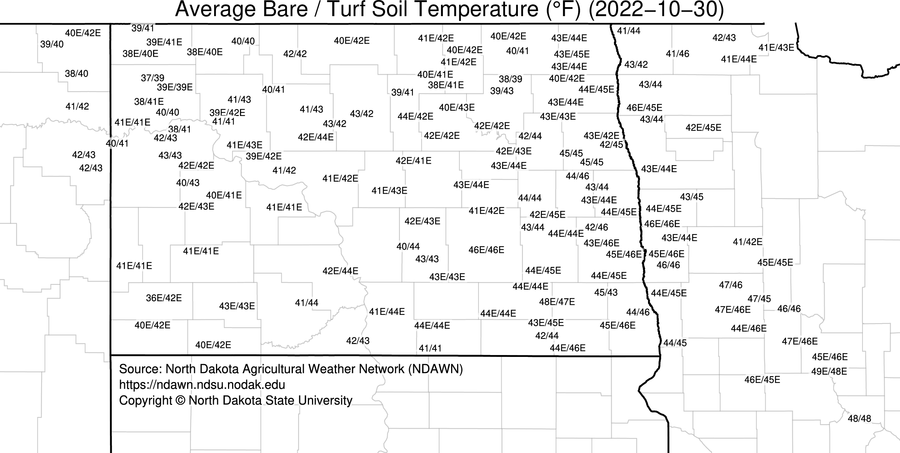

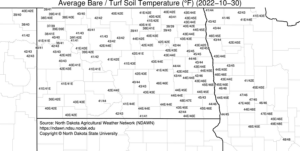

Map courtesy of the North Dakota Agricultural Weather Network (NDAWN).
You can find an updated average bare soil temperature map here.

The 50 °F soil temperature rule of thumb is particularly important for soils prone to nitrogen loss: well-drained, coarse-textured soils are prone to nitrate leaching and poorly-drained, fine-textured soils are prone to denitrification. If such soils receive excess precipitation or become saturated (waterlogged) through fall or spring, soil nitrate can be lost through leaching or denitrification. In general, it might be better to apply nitrogen fertilizer on such soils in spring. But, if you must apply nitrogen fertilizer in the fall, make sure you wait until soil temperatures are cold enough to keep it in the ammonium-nitrogen form for a longer period of time to reduce potential soil nitrogen losses.

For fall-applied nitrogen, subsurface banding or incorporation is also important to prevent ammonia volatilization, another potential nitrogen loss mechanism. Fall precipitation (rain or snow) is too sporadic and unreliable to be considered an effective incorporation “strategy” for fall-applied nitrogen. Fall-applied urea should be banded below the soil surface (3 inches or deeper) or incorporated with tillage (at least 3-4 inches) to ensure complete coverage. Shallow fertilizer bands or shallow incorporation with vertical tillage does not provide enough soil coverage to prevent ammonia volatilization.

Fall-applied anhydrous ammonia should be banded 5 to 6 inches deep. Ensure that anhydrous ammonia trenches are sealing properly to prevent gaseous ammonia losses from the trench. In addition, the nitrification inhibitor nitrapyrin (brand name N-Serve) can be added to anhydrous ammonia to delay nitrification, offering additional insurance to keep nitrogen in the safer ammonium-nitrogen form for longer. However, please note that its efficacy decreases with warmer soil temperatures, so it is no replacement for cool soil temperatures (<50 °F).

In conclusion, fall-applied nitrogen is a great way to allocate time and labor resources, leaving one less thing to do in the spring. But, you must be smart and consider fertilizer source, timing, and placement options to make sure that the nitrogen applied in fall will still be there next spring.

Jodi Boe

Protect Nitrogen Fertilizer from Ammonia Volatilization

in , , , /by

Recent rain and snow have brought much-needed precipitation to the northern Great Plains and upper Midwest regions. Some degree of drought conditions stretch from Alberta to Iowa, and agronomists and farmers are wondering the best ways to protect spring-applied nitrogen as the planting season continues. How much nitrogen might I lose if I cannot incorporate it? Does vertical tillage incorporate fertilizer enough? We have compiled some resources to help answer those questions.

There are three ways to lose fertilizer nitrogen: ammonia volatilization, denitrification, and nitrate leaching. In excessively wet soils, denitrification and nitrate leaching are a concern. However, for spring-applied nitrogen, ammonia volatilization is the main concern with dry soil conditions and unpredictable rainfall forecasts.

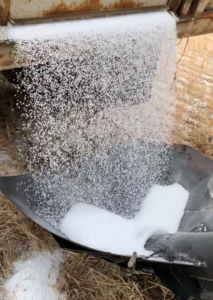

When you apply ammoniacal fertilizers (e.g. anhydrous ammonia, urea, UAN, ammonium sulfate) to the soil surface without sufficient incorporation, some amount of free ammonia (NH3) can escape to the atmosphere. Sufficient incorporation with tillage or precipitation is needed to safely protect that nitrogen investment below the soil surface. With dry soil conditions, this is important to remember because we must balance the need to protect nitrogen fertilizer while conserving soil water for seed germination and emergence.

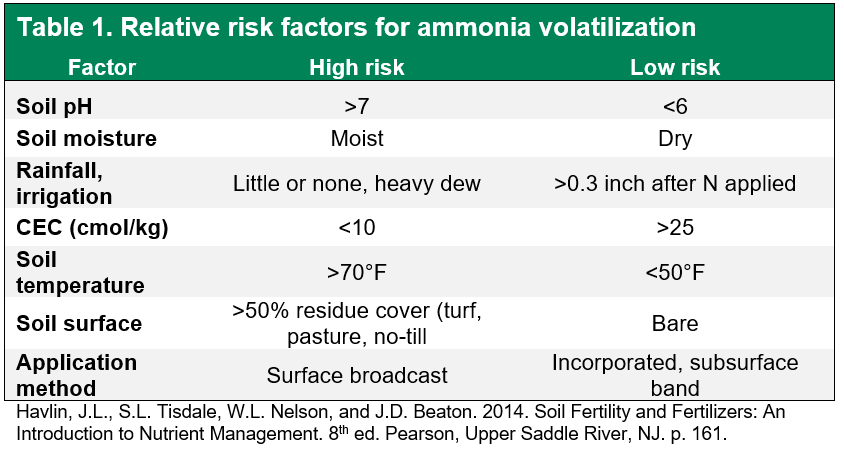

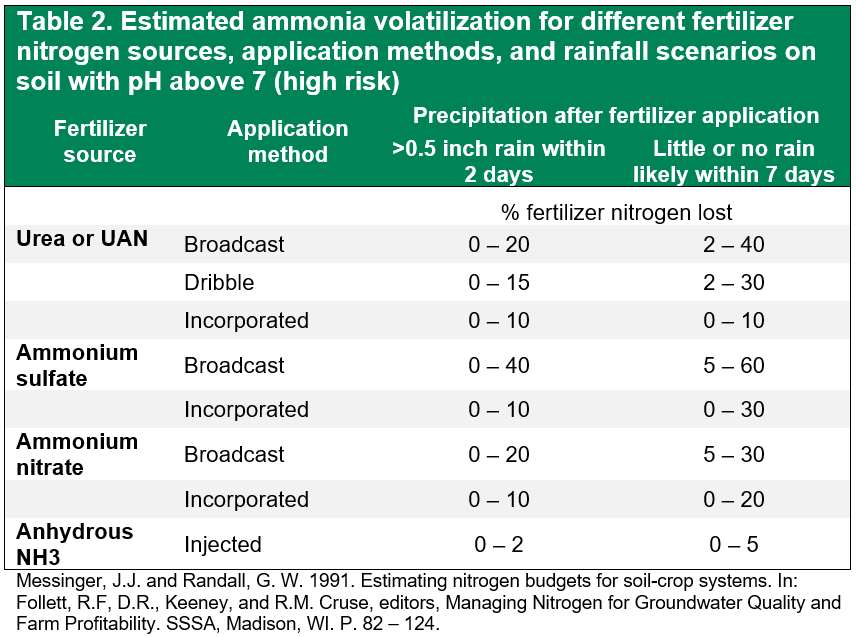

Ammonia volatilization risk depends on soil and environmental factors (Table 1) and the nitrogen fertilizer source (Table 2). Typically, we are most concerned about ammonia volatilization for surface-applied urea or UAN. It is not easy to estimate how much nitrogen might be lost, and sometimes the losses can be substantial. Although you cannot change the soil type or weather forecast, you do have control over the nitrogen source and application method (Table 2) to protect your nitrogen investment.

Practices to reduce ammonia volatilization, in order of most effective:

  • Apply urea in subsurface bands at least 3 inches below the soil surface. A shallow urea band (1 or 2 inches) acts like a slow-release anhydrous ammonia band, and nobody should ever apply anhydrous ammonia that shallow.
  • If nitrogen will be broadcast with incorporation, make sure the fertilizer is sufficiently incorporated at least 2 inches below the soil surface to ensure good soil coverage. A chisel plow or field cultivator is usually needed. The popularity of high-speed disks (vertical tillage) has led some people to think that it counts as a meaningful incorporation event. In reality, it just moves soil and crop residue around on the soil surface without really incorporating any fertilizer. Take a look after you run across the field and you will see white urea granules everywhere. There are soil-applied herbicide incorporation videos from the 1970s that show what a thorough incorporation job really requires.
  • If nitrogen will be broadcast without incorporation, try to time the fertilizer application right before rain (at least 0.3 inch of precipitation). Soils with good crop residue cover (no-till) may require more rain to sufficiently move urea or UAN into the soil surface.
  • If no rain is forecasted in the near future, consider applying a urease inhibitor on urea or UAN to provide temporary protection until rain arrives. The university research-proven urease inhibitor is NBPT, available in products like Agrotain (Koch) and its generic cousins. For generic products, make sure the active ingredient rate is 1.3 to 1.8 lb NBPT per ton of urea to ensure effective NBPT activity and protection. NBPT begins to breakdown after 7 to 14 days. In addition, it is important to remember that nitrification inhibitors like nitrapyrin and DCD do not protect against ammonia volatilization.

These practices should also be considered if you will be applying in-season nitrogen to corn or wheat later in the summer. it is always best to apply nitrogen below the soil surface, such as injected anhydrous ammonia or coulter-injected UAN, to protect nitrogen fertilizer. For surface-applied urea or UAN, you will want to time the fertilizer application just before a rainfall or consider NBPT to extend the rainfall window.

Resources on ammonia volatilization and urease inhibitors

Nitrogen extenders and additives for field crops, NDSU

How long can NBPT-treated urea remain on the soil surface without loss?, NDSU

Should you add inhibitors to your sidedress nitrogen application?, University of Minnesota

Split the risk with in-season nitrogen, AGVISE

John Breker

Phosphorus and the 4Rs: The progress we have made

in , , , /by

The year 2019 marked the 350th anniversary of discovering phosphorus, an element required for all life on Earth and an essential plant nutrient in crop production. Over the years, we have fallen in and out of love with phosphorus as a necessary crop input and an unwanted water pollutant. Through improved knowledge and technologies, we have made great progress in phosphorus management in crop production. Let’s take a look at our accomplishments!

Right Rate

Phosphorus fertilizer need and amount is determined through soil testing, based on regionally calibrated soil test levels for each crop. Soils with low soil test phosphorus require more fertilizer to optimize crop production, whereas soils with excess soil test phosphorus may only require a starter rate. Across the upper Midwest and northern Great Plains, soil testing shows that our crops generally need MORE phosphorus to optimize crop yield (Figure 1), particularly as crop yield and crop phosphorus removal in grain has increased. Since plant-available phosphorus varies across any field, precision soil sampling (grid or zone) allows us to vary fertilizer rates to better meet crop phosphorus requirements in different parts of the field.

For phosphorus and the 4Rs article

Figure 1. Soil samples with soil test phosphorus below 15 ppm critical level (Olsen P) across the upper Midwest and northern Great Plains in 2019.

Right Source

Nearly all phosphorus fertilizer materials sold in the upper Midwest and northern Great Plains are some ammoniated phosphate source, which has better plant availability in calcareous soils. Monoammonium phosphate (MAP, 11-52-0) is the most common dry source and convenient as a broadcast or seed-placed fertilizer. Some new phosphate products also include sulfur and micronutrients in the fertilizer granule, helping improve nutrient distribution and handling. The most common fluid source is ammonium polyphosphate (APP, 10-34-0), which usually contains about 75% polyphosphate and 25% orthophosphate that is available for immediate plant uptake. Liquid polyphosphate has the impressive ability to carry 2% zinc in solution, whereas pure orthophosphate can only carry 0.05% zinc. Such fertilizer product synergies help optimize phosphorus and micronutrient use efficiency.

Right Time

Soils of the northern Great Plains are often cold in spring, and early season plant phosphorus uptake can be limited to new seedlings and their small root systems. We apply phosphorus before or at planting to ensure adequate plant-available phosphorus to young plants and foster strong plant development. In-season phosphorus is rarely effective as a preventive or corrective strategy.

Right Place

Proper phosphorus placement depends on your system and goals. Broadcasting phosphorus fertilizer followed by incorporation allows quick application and uniform distribution of high phosphorus rates. This strategy works well if you are building soil test phosphorus in conventional till systems. In no-till systems, broadcast phosphorus without incorporation is not ideal because soluble phosphorus left on the surface can move with runoff to water bodies.

In no-till systems, subsurface banded phosphorus is more popular because phosphorus is placed below the soil surface, thus less vulnerable to runoff losses. In general, banded phosphorus is more efficient than broadcast phosphorus. In the concentrated fertilizer band, less soil reacts with the fertilizer granules, thus reducing phosphorus fixation, allowing improved plant phosphorus uptake. Some planting equipment configurations have the ability to place fertilizer near or with seed, which further optimizes fertilizer placement and timing for young plants.

For more information on 4R phosphorus management, please read this excellent open-access review article: Grant, C.A., and D.N. Flaten. 2019. J. Environ. Qual. 48(5):1356–1369.

John Lee

Caution: Ammonium Sulfate with Seed

in , , , , /by

Seed-placed fertilizer is a common practice to increase seedling vigor and optimize fertilizer placement and crop response. This is a popular strategy to apply phosphorus for canola, corn, and wheat. However, the seed-placed fertilizer rate cannot exceed seed safety limits, otherwise seedling germination and plant population may be reduced. Sulfur is very important in canola growth and development, so farmers often try placing ammonium sulfate (AMS) with canola seed as well! This can create big problems.

A team of agronomists and soil scientists at the University of Manitoba conducted greenhouse and field studies, examining the effect of seed-placed ammonium sulfate on canola plant population and seed yield. The plant population loss was much greater on soils with pH > 7.5 (Figure 1). The high pH soils contained calcium carbonate (CaCO3), which reacts with ammonium sulfate to create calcium sulfate (gypsum) and ammonium carbonate. The higher reaction pH of ammonium carbonate produces free ammonia (NH3). Free ammonia (NH3) in soil is toxic to living organisms and kills germinating seeds. Acute ammonia toxicity is a major concern with fertilizer materials that liberate free ammonia (NH3) in soil, such as anhydrous ammonia (82-0-0) or urea (46-0-0), ultimately reducing plant population if you are not careful with fertilizer rate and placement.

For Caution: Ammonium Sulfate with Seed post

Figure 1. Ammonium sulfate (AMS, 21-0-0-24S) included with seed-placed monoammonium phosphate (MAP, 10-52-0) reduced canola plant population. Soil carbonate content is 21% CCE and 0.5% CCE in knoll soil and hollow soil, respectively. Brandon, Manitoba.

Across the landscape, soil pH and carbonate content will vary. The well-drained lower landscape positions (swales, hollows) often have acidic to neutral pH and little carbonate. The upper landscape positions (knobs, knolls), suffering decades of soil erosion, often have high pH and ample carbonate (Figure 1). The risk of plant population loss is greater on eroded knobs where adding ammonium sulfate can create ammonia toxicity concern.

Considerable yield loss will occur if canola plant population is less than 70 plants per square meter. Even with low fertilizer rates, the interaction of seed-placed ammonium sulfate and phosphorus can greatly reduce canola plant population. In Manitoba, 25% plant population loss was observed with only 8 lb/acre S and 18 lb/acre P2O5 (Figure 2).For Caution: Ammonium Sulfate with Seed article

Figure 2. Ammonium sulfate (AMS, 21-0-0-24S) included with seed-placed monoammonium phosphate (MAP, 10-52-0) reduced canola plant population. Carman, Manitoba, 2011.

Sulfur is vital for successful canola production, but it must be applied safely. There are new air drill configurations with innovative seed and fertilizer placement options. Seed safety is paramount with seed-placed fertilizer. Ammonium sulfate should be broadcasted or banded away from seed (mid-row). Keeping ammonium sulfate away from seed will also allow you to maximize seed-placed phosphorus rates and efficiency without jeopardizing seed safety.

Placing ammonium sulfate with seed should be an emergency option only. Canola plant population loss should be expected, even at low ammonium sulfate rates, on soils with pH greater than 7.5 and calcium carbonate.
